iSCOUT

All inhabitants of your field under full control.

(0)

Remote monitoring of insect pressure saves time and optimizes use of resources – producing more with less.

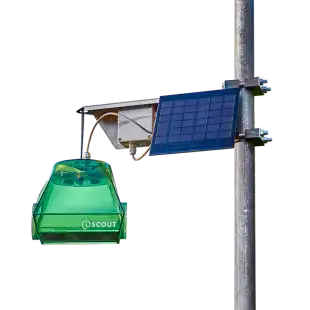

iSCOUT® is an insect trap with integrated electronics (camera system, modem, power source with solar panel) and sticky plate.

About iSCOUT

With the inspiration of helping the farmer to grow his crop in the optimal and most healthy way, Pessl Instruments GmbH, developed an optical high-resolution camera system, together with a computer vision software which is able to recognize insects from the photo.

Optical high-resolution camera system is embedded inside an insect trap, to remotely monitor insect pressure at fields.

We provide different types of traps, to cover a broad spectrum of insect species. All of the photos and data from computer vision software is displayed online, on a FieldClimate web portal.

iSCOUT® is an insect trap with integrated electronics (camera system, modem, power source with solar panel) and sticky plate. It can be hung wherever in the field needed, due to its low weight. In the field, the device is self-sufficient, as it is powered by a solar panel and a battery. 10 MP camera takes high-resolution pictures of the sticky plate within the iSCOUT® trap.

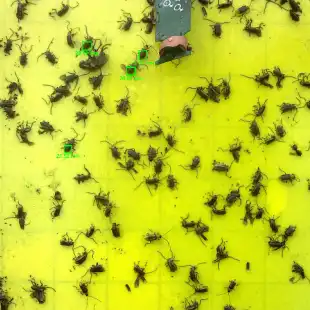

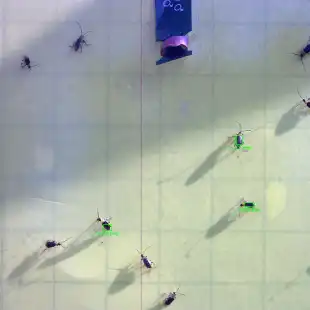

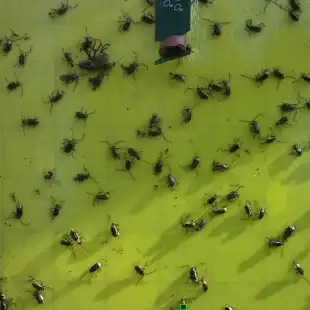

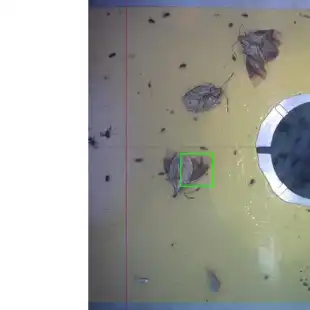

Images are sent via LTE to the FieldClimate platform where they are analyzed with AI (artificial intelligence) software. The results are then visible on web or mobile devices. As a result, we see the photo with rectangles around the target insect, as well as summarized data of the daily count, targets in total and development of insect population during the season. Control is real-time and the collected data can be used for further analysis.

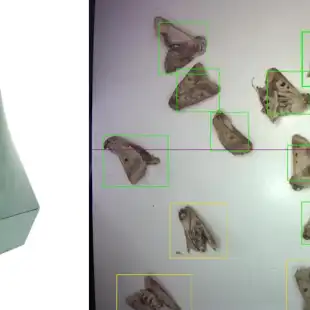

iSCOUT® PHEROMONE

Designed and developed to catch insects with insect specific pheromone lure (codling moth, european grape berry moth, tomato leafminer and many other species). It includes a metal plate on which sticky paper and a pheromone lure can be applied.

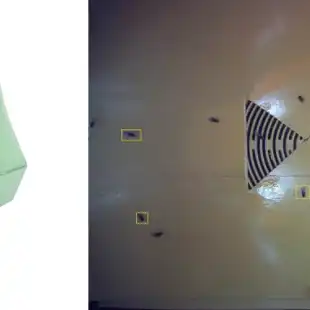

iSCOUT® FRUIT FLY

Designed and developed for catching fruit flies ((spotted wing drosophila, olive fruit fly, mediterranean fruit fly and many other species). Includes 3 mm nettings on entries, so that bigger flies (house flies) and other non targets are not able to enter the trap. Tank for feeding lure and metal plate with sticky paper are included. To catch and monitor bigger flies, nettings can be removed.

iSCOUT® BUG

Designed and developed for catching bugs (marmorated stink bug halyomorpha halys and other species). It includes a metal bottom plate with black pyramid wings and has closed side entries. Once the bug enters the trap from the bottom, it is fixed on the plate.

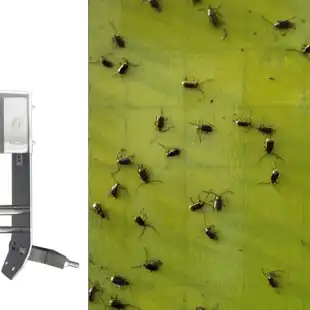

iSCOUT® COLOR TRAP

Designed and developed to monitor sticky traps of different colors. The device comes with a high resolution camera and a holder for a sticky plate.

blue: flies, leafminers, …
yellow: leafminers, western corn rootworm, common pollen beetle, …
white: apple sawfly, plum sawfly, plum fruit sawfly, raspberry beetle, …

Catchable pests

Number of different insects can be caught by different types of iSCOUT® devices.
Listed below you can see some of the insects that can be caught with iSCOUT®.
- Adoxophyes orana – summer fruit tortrix
- Agrotis segetum – turnip moth
- Amyelois transitella – navel orangeworm
- Anarsia lineatella – peach twig borer
- Archips podana – fruit tree tortrix moth
- Autographa gamma – silver Y moth
- Cydia funebrana – plum fruit moth
- Cydia molesta – peach moth
- Cydia pomonella – codling moth
- Epiphyas postvittana – light brown apple moth
- Eupoecilia ambiguella – european grape berry moth
- Helicoverpa armigera – cotton bollworm/Corn earworm
- Helicoverpa punctigera – native budworm
- Lobesia botrana – european grapevine moth
- Pandemis heparana – apple brown tortrix
- Phthorimaea operculella – potato tuber moth
- Plutella xylostella – diamondback moth
- Spodoptera frugiperda – fall armyworm
- Tuta absoluta – tomato leafminer
